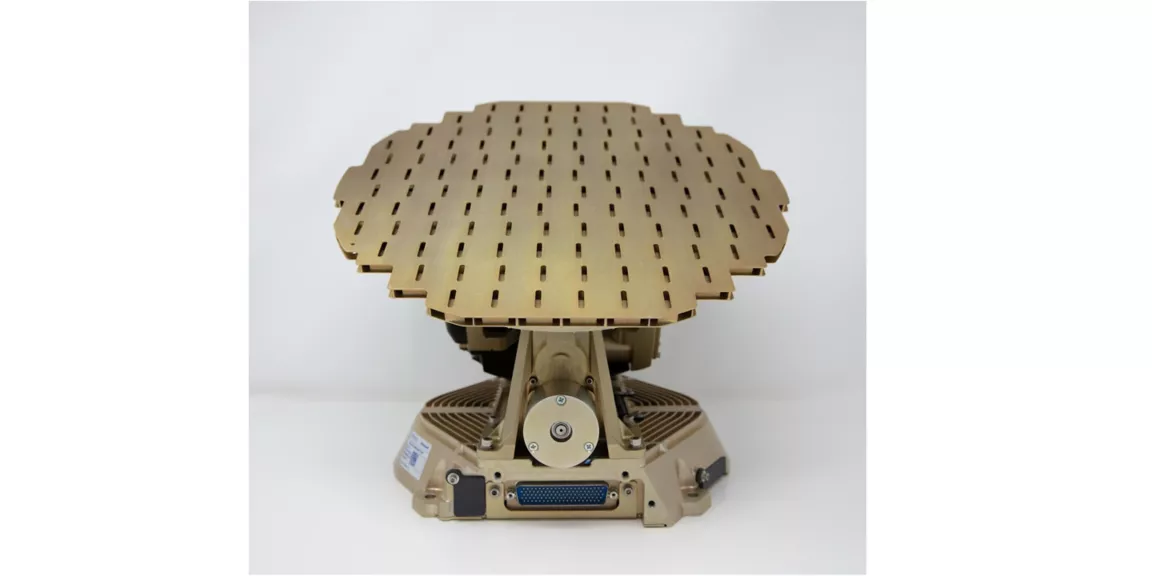

IntuVue RDR-7000 Weather Radar System Specifications

fully automated, higher resolution weather radar system with airborne ground/sea mapping system

solid-state transmitters utilizing pulse compression provide reduced weight and power consumption, advanced coherent processing, and increased reliability

RDR-7000 IntuVue radar systems technology integrated into a small, lightweight package

advanced features can be added at any time, including turbulence detection, advanced mapping, target detection and additional hazard features (lightning and hail detection), and forward looking (predictive) windshear

Enhances weather avoidance decision-making by 26% to detect and efficiently reroute around storms Predicts turbulence with 93% accuracy and reduces turbulence related incidences by over 50% Reducing the delays and downtime caused due to hailstorm, weather incidents and windshears

Antenna Size 12” and 18”

Transmitter Method Pulse Compression

Weight 13 lbs / 5.9 kg

Transmitter Type Solid State Gallium Nitride (GaN)

Maximum Detection Ranges 5 nm - Windshear Turbulence up to 60 nm depending on antenna size Weather and Ground up to 200 nm dependent on antenna size

Input Power 28 VDC voltage direct current

Antenna Type Flat Plate Solid State Gallium Nitride (GaN)
